After you complete your purchase, one of our experts will contact you to verify proper fitment.
The vehicle information you provided will be saved.
*All other brand lift kits are available.
Optional N3 Loaded Struts
• Maintains smooth, factory-like ride
• Increased ground clearance
• Nitrogen-charged
• Structurally engineered for lifted applications
• Infinitely Variable Damping
• Leak-proof piston seal
• Massive 1 3/8in Bore
• Silver powder coat finish
Optional V2 Monotube Shocks
• Monotube design
• Internal floating piston
• Nitrogen-charged
• 46mm high-flow piston
• Fast heat dissipation
• 36kN Tensile Strength
• Mounts inverted
• T6061 brushed aluminum body
YEARS |
MAKE |
MODEL |
DRIVE |
2007-2013 |
Chevy |
Silverado 1500 |
4WD |
2007-2013 |
GMC |
Sierra 1500 Denali |
4WD |
2007-2013 |
GMC |
Sierra 1500 |
4WD |
2007-2013 |
GMC |
Sierra 1500 |
AWD |
ITEM # |
RCC131 |
MFG # |
26230, 26231 |
Height |
5" |
Est. Install Time |
8-10 hours |
Instructions |
Recommended Tires & Wheels |
Tire |
Wheel |
Bolt Pattern |
Offset |
Note |
Stance ⓘ Stance is how much wider the new wheels and tires arewhen compared to the stock setup. • Mild: 0 - 1.5" wider than stock • Moderate: 1.5 - 3.25" wider than stock • Wide: 3.25" + wider than stock |
---|---|---|---|---|---|
|
|||||
285/65R18 |
18x8.5 |
6x5.5 |
+0, +1 |
- |
Moderate |
285/75R18 |
18x8.5 |
6x5.5 |
+0, +1 |
- |
Moderate |
295/70R18 |
18x8.5 |
6x5.5 |
+0, +1 |
- |
Moderate |
33x12.50R18 |
18x8.5 |
6x5.5 |
+0, +1 |
- |
Moderate |
285/65R18 |
18x9 |
6x5.5 |
+0, +1, +18, +20 |
- |
Moderate |
295/70R18 |
18x9 |
6x5.5 |
+0, +1, +18, +20 |
- |
Moderate |
33x12.50R18 |
18x9 |
6x5.5 |
+0, +1, +18, +20 |
- |
Moderate |
295/60R20 |
20x10 |
6x5.5 |
-18, -19 |
Trimming Required |
Wide |
305/55R20 |
20x10 |
6x5.5 |
-18, -19 |
Minor Trimming |
Wide |
33x12.50R20 |
20x10 |
6x5.5 |
-18, -19 |
Minor Trimming |
Wide |
295/60R20 |
20x9 |
6x5.5 |
+0, +1, +18 |
Minor Trimming |
Moderate |
295/60R20 |
20x9 |
6x5.5 |
+20 |
- |
Moderate |
305/55R20 |
20x9 |
6x5.5 |
+0, +1, +12, +18, +20 |
- |
Moderate |
33x12.50R20 |
20x9 |
6x5.5 |
+0, +1, +12, +18, +20 |
- |
Moderate |
305/45R22 |
22x10 |
6x5.5 |
-18, -19 |
- |
Wide |
33x12.50R22 |
22x10 |
6x5.5 |
-18, -19 |
Minor Trimming |
Wide |
⚠ Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.
PARTS |

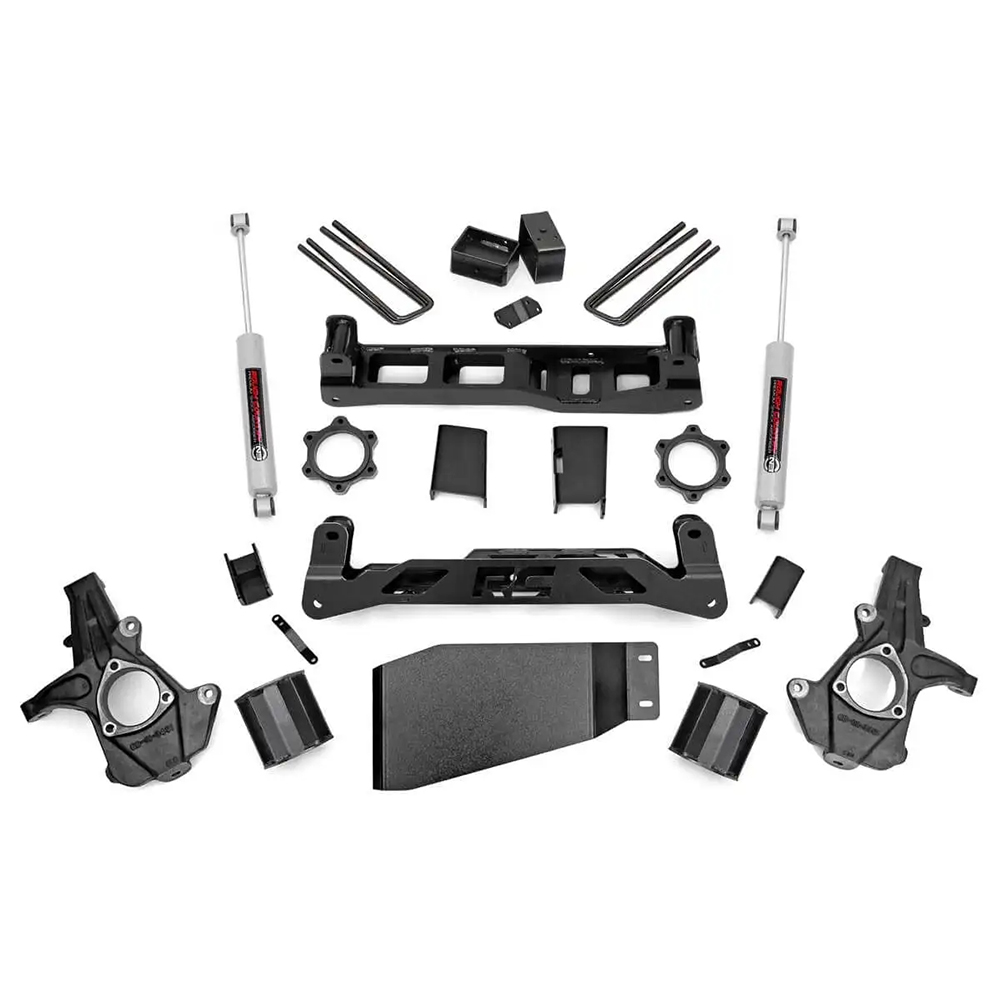

FRONT Lifted knuckles Front crossmember Rear crossmember Upper strut spacers (SKU: 262.20/262.22) Brake line brackets CV spacers Differential drop brackets Differential skid plate Sway-bar drop brackets Hardware REAR 4.5in fabricated lift blocks U-bolts Hardware SHOCKS (2) Premium N3 Series (Rear) Optional: (2) Performance 2.2 Series (Rear) [+$50] (SKU: 262.22) Optional: (2) Premium N2.0 Series Lifted Struts (Front) [+$200] (SKU: 262.23) Optional: (2) Premium N2.0 Series Lifted Struts (Front) / (2) Performance 2.2 Series Shocks (Rear) [+$250] (SKU: 262.24) |
Overhaul your '07 - '13 Chevy / GMC 1500 Pickup with Rough Country's jaw-dropping 5-inch Suspension Lift. Gain enough clearance to run up to 33-inch tires on factory 20-inch wheels with this all-inclusive kit. A set of lifted knuckles, front and rear crossmembers, 4.5-inch fabricated rear blocks, and upper strut spacers help your truck achieve a monster stance. This 1500 lif kit also ships with differential drop brackets, cv spacers, sway-bar drop brackets, and rear brake line brackets to maintain optimum angles after lifting. A durable lower skid plate keeps crucial components protected, and Rough Country’s Premium N3 shocks allow for uncompromised off-road performance. Featuring 100% precision laser cut materials designed by Rough Country engineers, this 1500 lift kit installs easy and fits like a glove.
Local pickup welcome.
Some vehicles may require additional modifications or parts.
Guaranteed Fitment.
